Salus Quantum RF Programable Stat
Overview

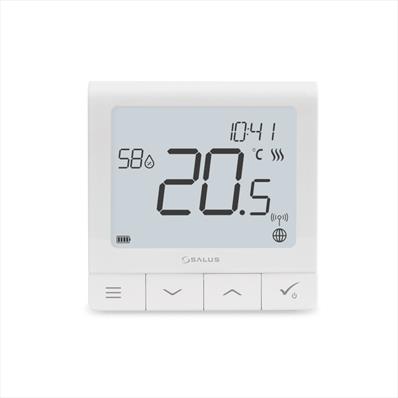

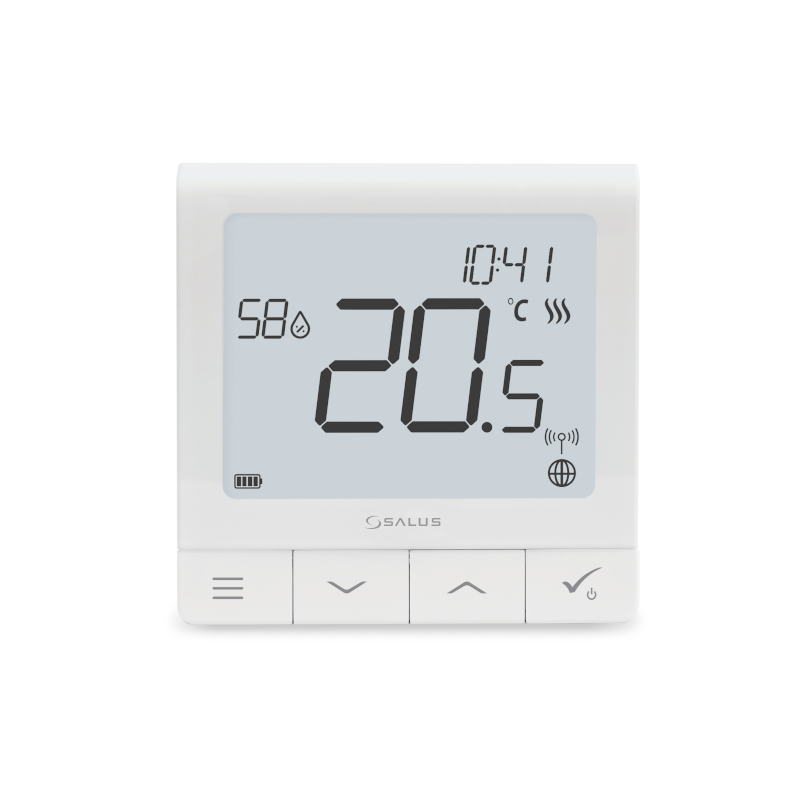

The SQ610RF Quantum is a ZigBee temperature controller for wireless control of iT600 series devices, such as the KL08RF wiring centre, mini TRV head, RX10RF boiler control module. In order to control SQ610RF over the Internet or via the
SALUS Smart Home mobile app (ONLINE mode), it must be installed together with the UGE600 Internet gateway(sold separately).
From the application level, it is possible to pair SQ610RF with other system elements, e.g. Smart Plug SPE600, Smart Relay SR600 or window/ door sensor OS600/SW600. SQ610RF can be used locally without an Internet connection (OFFLINE mode), however, it’s communication with other devices must be done using the CO10RF coordinator (sold separately).
Technical Spec
| PRODUCT TYPE | Thermostat |
|---|---|
| MOUNTING TYPE | Wall or desk
|
| POWER SUPPLY TYPE | Battery |
| SUITABLE FOR UNDERFLOOR HEATING | Yes
|
| CONTROLLED VIA INTERNET | Yes |
| FREQUENCY | 2.4 GHz
|
| COMPATIBLE WITH FLOOR SENSOR | Yes |
|---|---|
| TEMPERATURE CONTROL ALGORITHM | ITLC
|
| WARRANTY | 5 years |
| ERP (EFFICIENCY CLASS) | IV
|
| COOLING MODE FUNCTION | Yes |
| VALVE PROTECTION | Yes
|
| ADJUSTABLE HYSTERESIS | 0.25°C – 0.5°C |
| ZIGBEE TECHNOLOGY | Yes
|
| SIZE (MM) | 86 x 86 x 11 |
| TEMPERATURE RANGE | 5 – 35°C
|
| OPTIMISATION FUNCTIONS | Yes |
| LCD | Yes
|
| LANDLORD PIN | Yes |
| DISPLAY TEMPERATURE RESOLUTION | 0,5/0,1
|
| BATTERY TYPE | LI-ION battery |
| VOLTAGE | 3,7V
|
| MAXIMUM AMPERAGE | 0.5 A |
| COMMUNICATION RANGE (M) | 30
|
| PREDEFINED PROGRAMS | Yes |
| CUSTOMIZABLE PROGRAMS | Yes
|
