Salus Quantum 230V Programable Stat
Overview

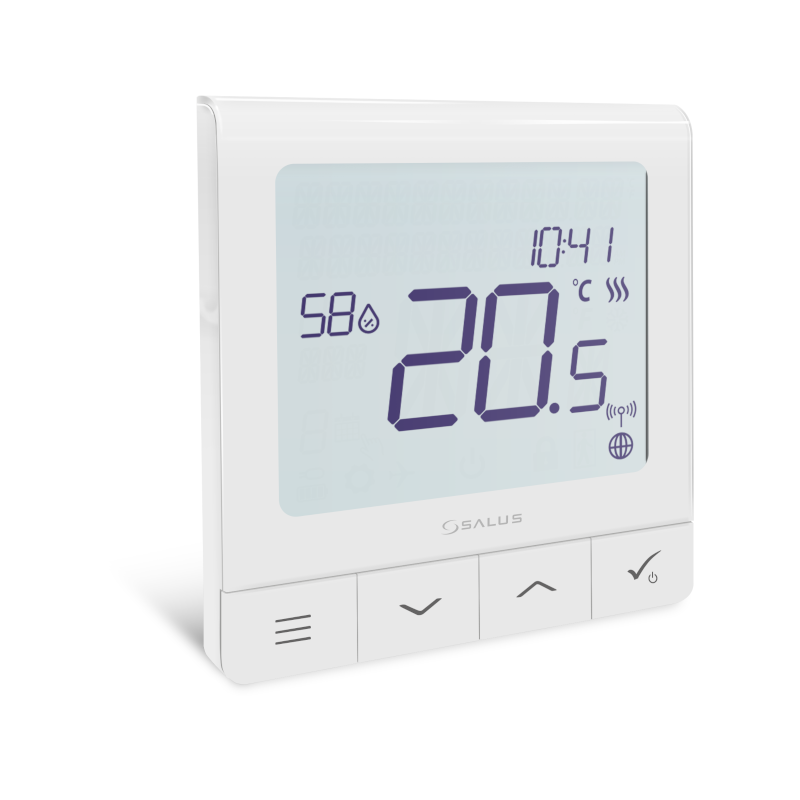

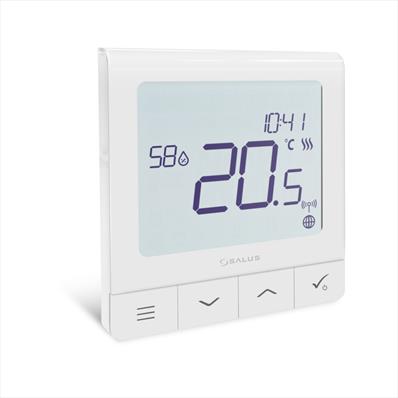

The SQ610 Quantum is a ZigBee temperature controller for wireless control of iT600 series devices, such as the KL08RF wiring centre, mini TRV head, RX10RF boiler control module.
In order to control SQ610 over the Internet or via the SALUS Smart Home mobile app (ONLINE mode), it must be installed together with the UGE600 Internet gateway (sold separately).
From the application level, it is possible to pair SQ610 with other system elements, e.g. Smart Plug SPE600, Smart Relay SR600 or window/ door sensor OS600/SW600. SQ610 can be used locally without an Internet connection (OFFLINE mode), however, it’s communication with other devices must be done using the CO10RF coordinator (sold separately).
THERMOSTAT SQ610 Quantum can work without Universal Gateway or CO10RF Coordinator as a standalone device.
Technical Spec
| PRODUCT TYPE | Thermostat |
|---|---|
| MOUNTING TYPE | Flush mounting |
| POWER SUPPLY TYPE | 230V |
| SUITABLE FOR UNDERFLOOR HEATING | Yes |
| CONTROLLED VIA INTERNET | Yes |
| FREQUENCY | 2.4 GHz |
| TEMPERATURE CONTROL ALGORITHM | ITLC |
| OUTPUT VOLTAGE | Volt free |
| WARRANTY | 5 years |
| ERP (EFFICIENCY CLASS) | IV |
| COOLING MODE FUNCTION | Yes |
| VALVE PROTECTION | Yes |
| ADJUSTABLE HYSTERESIS | 0.25°C – 0.5°C |
| ZIGBEE TECHNOLOGY | Yes |
| SIZE (MM) | 86 x 86 x 27 |
| TEMPERATURE RANGE | 5 – 35°C |
| OPTIMISATION FUNCTIONS | Yes |
| LCD | Yes |
| LANDLORD PIN | Yes |
| DISPLAY TEMPERATURE RESOLUTION | 0,5/0,1 |
| VOLTAGE | 230V |
| MAXIMUM AMPERAGE | 3 (1) A |
| COMMUNICATION RANGE (M) | 30 |
| QUICK INSTALLATION / CONNECTION | Yes |
| SERVICE MODE | Yes |
| DAILY / MONDAY - SUNDAY PROGRAMMING | Yes |
