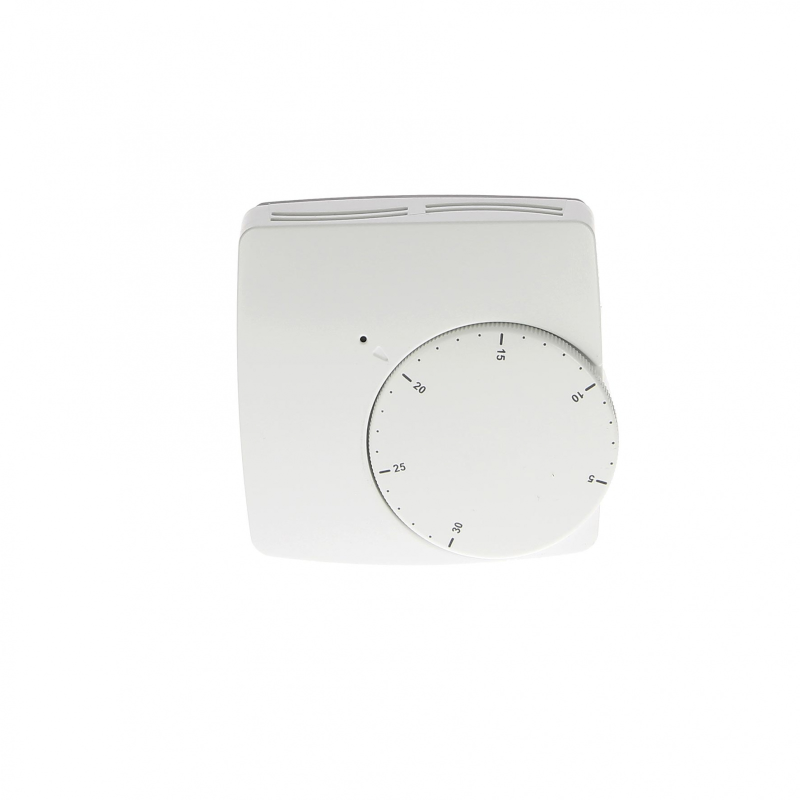

Watts 24Vac Dial Thermostat

24Vac electronic dial thermostat with LED indication. Thermostat allows the temperature to be measured in the room but does allow for changes to be made by the occupants. Unit offers night setback when activated by remote time switch. Night setback is fixed at 4˚c. Unit will accept remote sensor type RAD-66.

Features:

• One stage heat
• Dial Adjustment On Cover
• Range: +5c to +30c
• Differential: 1.0c
• On/Auto/Off Selection Switch
• Night Setback fixed at 4˚c – when used with separate time switch
• Auxiliary Floor Sensor or Air Sensor can be connected – 10 kΩ thermistor
• Air control /Floor limit option
• LED indication on heat call
• Floor Limiting Temperature Range 10c – 40c
• On/Off Contacts: SPST
• Dimensions 80mm x 80mm x 31mm
